Supermicro Hyper SuperServer SYS-621H-TN12R with 5th Gen Intel® Xeon®, Up to 4 Double-Width GPUs, and 32 DIMM Slots

Product Categories
Beijing Core-Net Techonology Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Supermicro Hyper SuperServer SYS-621H-TN12R with 5th Gen Intel® Xeon®, Up to 4 Double-Width GPUs, and 32 DIMM Slots

Brand Name : Supermicro

Model Number : SYS-621H-TN12R

Place of Origin : China

MOQ : 1/set

Payment Terms : T/T

Supply Ability : 50pcs per week

Delivery Time : 2-3 work days

Form Factor : 2U Rackmount

Processor : 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Max GPU Count : Up to 4 double-width or 8 single-width GPUs

Supported GPU : NVIDIA PCIe: H100, L40, L40S, L4, A40, A16, A100

Slot Count : 32 DIMM slots

Gross Weight : 63 lbs (28.6 kg)

Net Weight : 37 lbs (16.8 kg)

Available Color : N/A

Power Supply : 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Contact Now

Supermicro Hyper SuperServer SYS-621H-TN12R
Key Applications
Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
Key Features
  • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
  • Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
  • Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  • 4 heavy duty hot-swap fans with optimal fan speed control
Technical Specifications
Form Factor 2U Rackmount Enclosure: 437 x 88.9 x 803mm (17.2" x 3.5" x 31.6")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")
Processor Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T; Up to 320MB Cache per CPU
GPU Max GPU Count: Up to 4 double-width or 8 single-width GPUs
Supported GPU: NVIDIA PCIe: H100, L40, L40S, L4, A40, A16, A100
System Memory Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Drive Bays Configuration Default: Total 12 bays
12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)
Expansion Slots PCI-Express (PCIe) Configuration:
Option A*: 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots + 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B*: 8 PCIe 5.0 x8 (in x16) HH/10.5"L slots + 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110)
Power Supply 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimensions and Weight Weight: Gross Weight: 63 lbs (28.6 kg) Net Weight: 37 lbs (16.8 kg)
Available Color: N/A

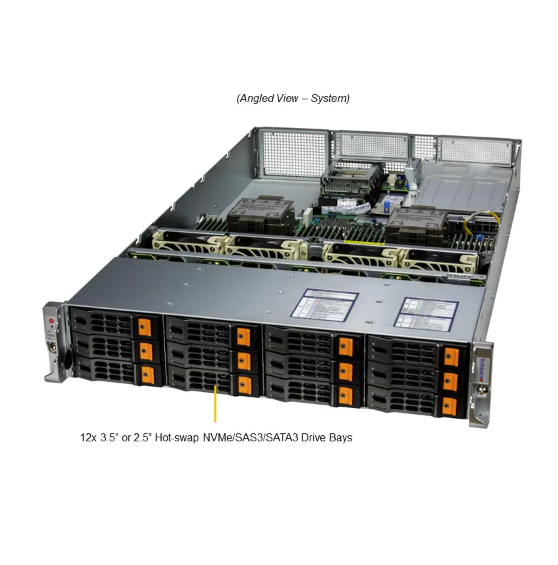

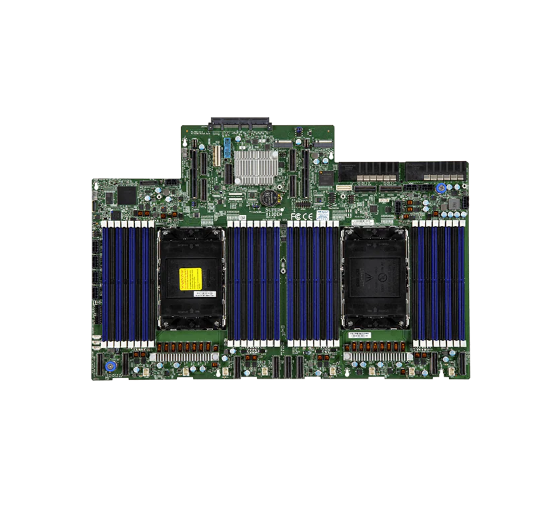

Product Images
Supermicro Hyper SuperServer SYS-621H-TN12R with 5th Gen Intel® Xeon®, Up to 4 Double-Width GPUs, and 32 DIMM Slots Supermicro Hyper SuperServer SYS-621H-TN12R with 5th Gen Intel® Xeon®, Up to 4 Double-Width GPUs, and 32 DIMM Slots Supermicro Hyper SuperServer SYS-621H-TN12R with 5th Gen Intel® Xeon®, Up to 4 Double-Width GPUs, and 32 DIMM Slots
